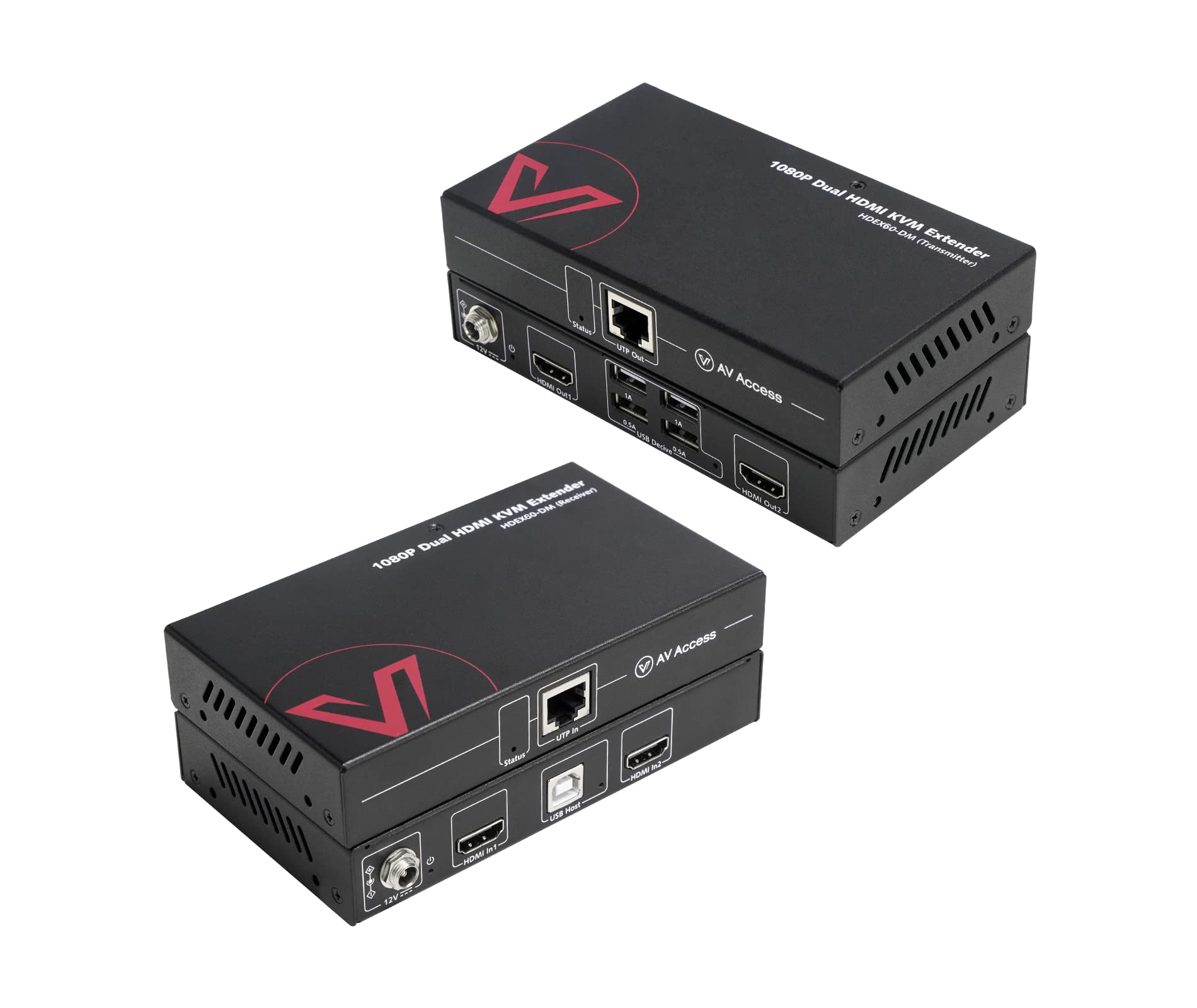

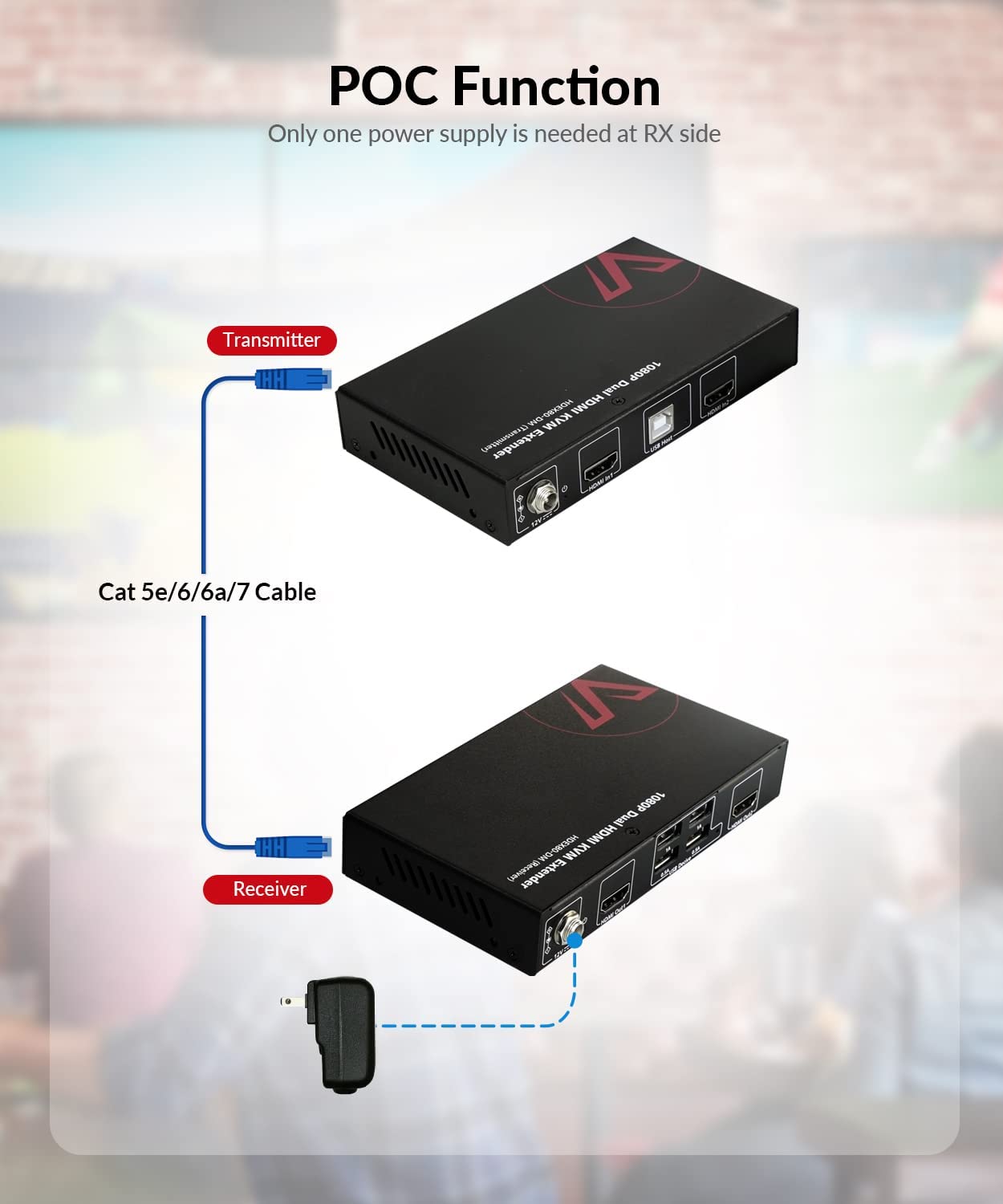

1080P Dual Monitor KVM Extender AV Access HDEX60-DM is a brand-new dual monitor HDMI KVM extender kit. It can transmit dual 1080P HDMI signal along with USB 2.0 up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero latency. With its plug-n-play feature, ultra-slim design and excellent performance, HDEX60-DM KVM extender is ideal for extending your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity! Main Features: Brand-New dual HDMI design;Supports 1080P@60Hz 4:4:4 8bit and HDCP 1.4;Extends HDMI and USB signals up to 60m/197ft with zero latency;4x USB 2.0 ports with full bandwidth up to 480Mbps;Two USB device ports support 5V/1A higher current output;Supports one-way PoC;Plug and play, no driver needed;Ultra-Slim and portable design. Effortless USB Signal Extension Designed with four USB 2.0 device ports on the receiver, the HDMI KVM extender allows you to extend mouse, keyboard, printer, scanner or other USB 2.0 devices up to 60m/197ft. Two of the USB ports support 5V/1A higher current output, so you can easily connect high-power USB devices, such as USB camera or USB hard disk. Users can connect a PC to USB Host port of the transmitter. Insert the PC to HDMI In 1/2 port of the transmitter. All USB devices connected to the receiver will be connected to the PC. The display connected to HDMI Out 1/2 of the receiver will display the signal from HDMI In 1/2. Uncompressed 1080p HDMI Signal 1080p@60hz Uncompressed transmission with zero latency. Thunder Strike Protection Built-in Surge/ESD protection to prevent thunder and lightning strike. Package Contents Transmitter x 1Receiver x1DC 12V Power Adapter (with US, UK and EU Pins) x 1USB 2.0 type-A to type-B Cable x 1Mounting Brackets (with Screws) x 4User Manual x 1 Specifications Technical - Video Signal Type HDMI with 1080P@60Hz, 4:4:4 8bit, HDCP 1.4 Input/Output Resolution 1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz Audio Format PCM 2.0 Max Data Rate 6.75 Gbps General - Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 20% to 90%, non-condensing Power Consumption 5.7W (Maximum) Device Dimensions (W x H x D) 140 mm ×25 mm ×80.2 mm/ 5.51” x 0.98” x 3.16” Product Weight Transmitter/Receiver: 0.33kg/0.73lb HDEX60-DM U2EX50 HDEX80-KVM 4KIP100-KVM 4KEX100-KVM Buying Options Add To Basket Add To Basket Add To Basket Buying Options Customer Reviews 4.6 out of 5 stars 15 4.4 out of 5 stars 574 4.4 out of 5 stars 113 4.4 out of 5 stars 113 4.0 out of 5 stars 139 Price — no data £52.99£52.99 £99.99£99.99 £99.99£99.99 — no data Video Interface HDMI × HDMI HDMI HDMI Video Resolution 1080P@60Hz × 1080p @60Hz 4K@30Hz 4K@60Hz Transmission Range 197ft(60m) 196ft (60m) 260ft (80m) 390ft (120m) 330ft (100m) Dual HDMI ✓ × × × × USB Ports 4x USB 2.0 4 x USB 2.0 2 x USB 2.0 3 x USB 2.0 4 x USB 2.0 IR × × × × × RS232 × × × × ✓ Power Uni-Direction POE × Bi-Direction POE × Uni-Direction Router/Ethernet Switch Compatible × × × Yes. Up to 16 Sets × HDMI Version 1.3 × 1.3 1.4 1.4
